T‑cork capping specialists

Automatic T‑cork capping, cork insertion and press‑on closure machinery.

A focused UK resource for specifying T‑corkers: compact pneumatic presses, semi-automatic cork stations, automatic cork feeders, linear press cappers and high-speed rotary corking machines.

Compare machines Request a quote

20–60 bpmlinear automatic range

2600 bphLU‑DSJ2 wine corker

6000 bphrotary corking option

Specialist knowledge

Built around the practical details of cork insertion.

Good T‑cork capping is not just a press stroke. It depends on closure orientation, neck fit, insertion depth, bottle handling, clean operation and a machine layout that matches your production rate.

Closure control

Vibratory bowl sorting, cork rails, escapements and custom chucks help present T‑corks consistently before the press head descends.

Repeatable insertion

Press travel, air pressure, bottle support and neck alignment are set to prevent skewed corks, over-insertion, top damage or inconsistent bottle presentation.

Line integration

Automatic corkers can be supplied as stand-alone cells or integrated with filling, labelling, conveyors and end-of-line automation.

Machine range

Choose the right T‑corker for your output target.

Start with the machine type, then confirm bottle and closure dimensions. Final output always depends on format, operator workflow, utilities and integration scope.

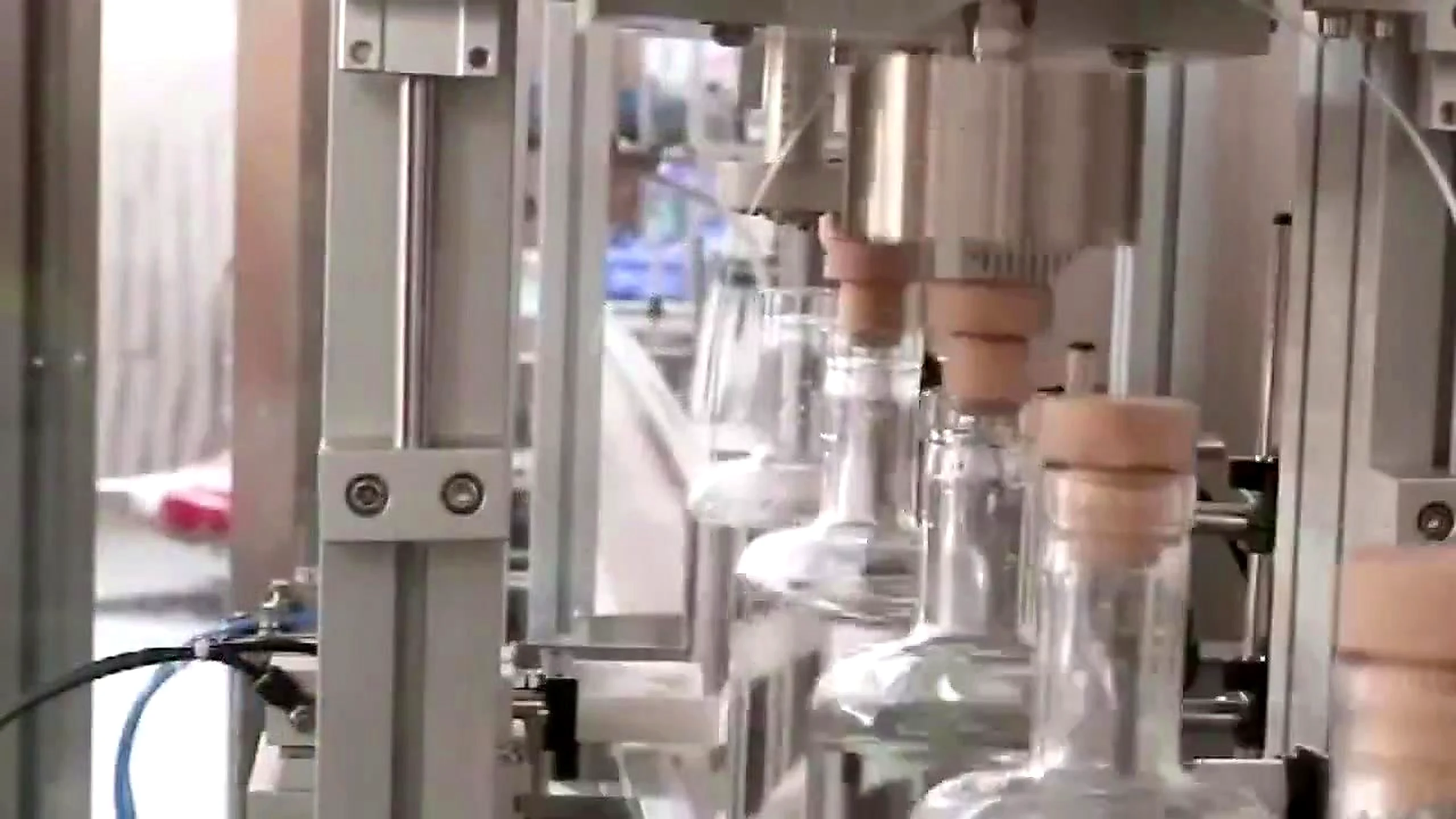

Automatic T‑cork press capper

LU‑XG16D3 T‑Cork Press Capping Machine

An automatic press-on capping machine for T-corks, inner plugs and similar push-fit closures. A vibrating bowl sorter orders the closures before feeding them to the capping head, helping maintain a consistent orientation and a repeatable insertion depth.

Spirits and liqueur bottles using T-corks
Brewing, beverage, cosmetics and daily chemical lines
Producers needing automatic cork orientation before insertion

Throughput: 20–30 bottles/minute
Format: Bottle height 30–300 mm; cap diameter 18–70 mm; bottle diameter 30–100 mm

View machine details

LU‑XG16D1 cap feeder and cork insertion machine detail

Automatic cork press with custom guide rail

LU‑XG16D1 Cork Pressing Machine with Cap Feeder

A custom automatic capping machine designed for pressing wooden T-corks and similar closures into wine bottles and related containers. The cork guiding rail is built around the closure diameter so the machine can feed, position and press the cork with minimal manual handling.

Wineries and beverage producers scaling from manual corking
Automatic lines requiring cork feeding before pressing
Projects where the guide rail must match a specific cork diameter

Throughput: 20–60 bottles/minute
Format: Bottle height 30–300 mm; cap diameter 18–70 mm; bottle diameter 30–100 mm

View machine details

Fully automatic cork press capper

LU‑XG16D Automatic Cork Pressing Capping Machine

A fully automatic cork feeding and pressing machine with a protective dust cover. It is designed to maintain clean, repeatable operation while pressing corks into bottles at production speed, and can be integrated with filling and labelling machines.

Higher hygiene requirements
Beverage, pharmaceutical and cosmetic packaging lines
Plants seeking lower manual labour and repeatable insertion depth

Throughput: 20–60 bottles/minute
Format: Bottle height 30–300 mm; cap diameter 18–70 mm; bottle diameter 20–160 mm

View machine details

Automatic wine bottle cork feeder and press

LU‑DSJ2 Automatic Wine Bottle Corker

An automatic cork feeding and capping machine for efficient wine bottle corking. It feeds corks automatically and presses them into place with precision, and is suited to integration with filling and labelling equipment for automated wine bottling lines.

Wine bottle corking with defined cork diameter and height
Automated bottling lines needing cork feed and press in one unit
Producers targeting around 2600 bottles/hour

Throughput: 2600 bottles/hour
Format: Cork diameter 20–23 mm; cork height 38–45 mm; bottle diameter 55–95 mm

View machine details

View the full machine comparison

Applications

For premium bottles and press‑fit closures.

Whisky, gin, vodka and rum bottles
Liqueur and spirit miniatures
Wine and fortified wine bottles
Premium beverage bottles
Cosmetics and personal care containers
Pharmaceutical and healthcare packs
Daily chemical products
Specialist short-run bottling

Specification support

What Lancing UK needs to recommend a machine.

Bottle height, diameter, neck finish and stability.
Cork top diameter, shank diameter, shank height and material.
Target output in bottles per minute or bottles per hour.
Existing conveyor speed, direction and line footprint.
Compressed air, power supply and hygiene requirements.
Requirement for dust covers, guarding, bowl feeders or custom tooling.

Technical resource

Read the specialist guides before you buy.

T‑cork capping guide

Understand machine types, cork feeding, press heads, insertion depth and line integration.

Read the guide

Bottle and cork compatibility

Check the dimensions and samples required to avoid jams, skewing, damage or inconsistent insertion.

Check compatibility

Troubleshooting

Diagnose common corking issues such as crooked corks, variable depth, bowl jams, top damage and slow throughput.

Find the cause

Quick answers

Frequently asked questions about T‑cork capping.

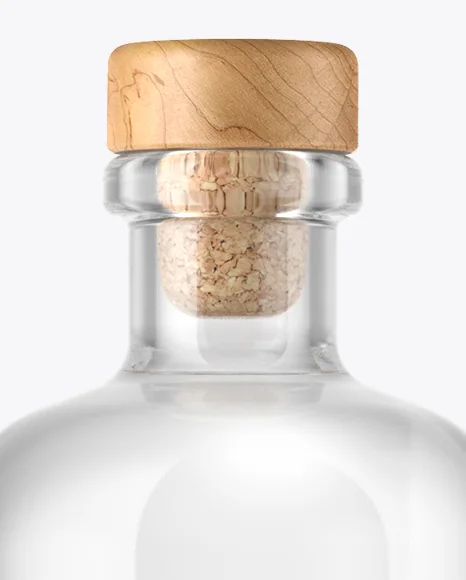

What is a T‑cork capping machine?

A T‑cork capping machine presses a T-shaped stopper into a bottle neck. Depending on configuration it can also sort, feed and orient closures before pressing them to a controlled depth.

Which bottles are suitable for T‑cork capping?

Suitability depends on bottle height, diameter, neck finish, cork shank diameter, cork height and closure top geometry. Lancing UK can review samples and recommend the correct chuck, guide rail and press settings.

Can a T‑corker integrate with filling and labelling machines?

Yes. Automatic T-cork capping systems can be configured with conveyors, sensors and control interfaces for integration with filling, labelling and end-of-line packaging equipment.

What throughput is possible?

Compact and linear automatic systems in this range cover approximately 20–60 bottles per minute depending on model and format, while rotary equipment can reach around 6000 bottles per hour for suitable formats.

What information is needed for a quotation?

Send bottle samples or drawings, cork dimensions, expected output, line layout, available utilities and whether you need cork sorting, feeding, dust cover, conveyor integration or commissioning support.

Specify the right T‑corker

Send your bottle and closure details for a practical recommendation.

Share bottle height, diameter, neck finish, cork dimensions, expected units per hour and whether the machine must integrate with filling, labelling or existing conveyors.

Request a quote Call 01494 623015

Engineering evidence

Specify a T‑cork or bar‑top closure around the real bottle and closure pair.

A reliable result starts with the interface between the bottle neck, the closure shank and the visible decorative top. Catalogue dimensions are useful for shortlisting, but tooling and settings should be confirmed with representative production samples, including the extremes of the approved bottle and closure tolerances.

Measure the closure

Record top diameter and height, shank diameter and length, material, surface finish, concentricity and any moulding or natural-cork variation. The feeder must orient the decorative top without marking it, while the chuck must support the closure without creating witness marks.

Support the bottle

Check neck bore, neck-face condition, bottle height, base stability, glass distribution and the effect of the filled product weight. Bottle guides and a positive support point should resist rocking without squeezing or scuffing the container.

Define the finished result

Agree the acceptable finished height, squareness, top orientation where decoration is directional, freedom from chips or stress marks, and the inspection method. Insertion force should be established by trial rather than assumed from a generic figure.

Evidence to capture during a sample trial

Incoming samples	Identify every bottle and closure batch, measure a representative spread and retain the dimensional results with photographs.
Feeding and orientation	Record upright feed rate, recirculation, double feeds, jams, top damage and recovery after the feeder has been stopped and restarted.
Insertion quality	Measure finished closure height at agreed points, inspect squareness and decoration, and note any change after machine speed or air settings are adjusted.
Bottle protection	Inspect the neck, shoulder, body and base for chips, cracks, scuffs or instability. Any bottle breakage must be investigated before the format is accepted.
Line behaviour	Check bottle spacing, accumulation, no-bottle/no-closure logic, feeder-low response and the transfer to downstream labelling or packing equipment.

Clear page ownership: this site concentrates on T‑corks and decorative bar‑top closures. For threaded, pump, trigger and ROPP closure selection, use the wider capping machinery guide or the specialist ROPP capping resource. Broader feeder projects are covered by Cap Feeders UK, while complete filling, capping and labelling integration belongs on Packaging Lines UK.

Prepare bottle and closure data Send a project enquiry

Specification control

Turn the bottle and closure brief into a controlled T‑cork machine specification.

A machine can sit inside a published bottle or closure range and still need dedicated guides, feeder tooling, a matched chuck or a different handling method. The useful starting point is therefore the accepted finished bottle, the real production conditions and the precise boundary of the T‑cork station.

1. Define the finished bottle

State the reference surface for finished height, the permitted height variation, squareness, any required decorative-top orientation and which visible areas must remain free from marks. Include the bottle and closure supplier requirements for fit or retention rather than applying a generic insertion-force value.

2. Define the production state

Confirm whether trials use empty or filled bottles, the normal bottle and closure batches, the condition of the neck before capping, the effect of labels or neck decoration and the way bottles arrive at and leave the press. A stable hand-placed sample does not prove automatic line behaviour.

3. Define the machine boundary

Identify who supplies closure feeding, bottle spacing, reject handling, accumulation, guarding interfaces and upstream or downstream controls. Record the required response to no bottle, no closure, low feeder level, an interrupted press cycle and a controlled restart.

Project question	Evidence to prepare	Best next resource
Will the bottle and closure pair fit consistently?	Measured bottle necks, closure shanks, decorative tops and samples from the expected tolerance range.	Bottle and T‑cork compatibility
Does the project require automatic feeding and line controls?	Target good output, feeder refill method, line layout, stop/start sequence and available utilities.	Automatic T‑cork inserter selection
Is the decorative finish part of the acceptance standard?	Approved top orientation, contact areas, finished-height method and downstream handling checks.	Spirit and premium bottle capping
Can the closure be oriented without damage?	Production closures from representative batches, including dimensional and surface-finish variation.	T‑cork feeding systems
Which machine architecture is appropriate?	Format count, changeover frequency, operator method, footprint and complete-line output requirement.	Compare T‑cork machine routes

Use the technical T‑cork guide to structure the trial and the existing enquiry form to send the bottle, closure and line information to Lancing.

Send project details Compare machines

Final buyer routes

Find the right T‑cork route before requesting a machine recommendation.

The strongest enquiry starts with the pack, not the machine name. Use these focused guides to define the closure, bottle, output target, acceptance method and integration boundary before samples are reviewed.

Bar‑top closure projects

For spirits, oils and premium bottles using decorative tops, start with bar‑top corking machine selection and the finished-height guide.

Trial and acceptance planning

Where quality evidence is important, use the sample trial and FAT checklist with the bottle-breakage control guide.

Installation and ownership

For line projects, review installation and integration, changeover and maintenance and quotation cost factors.

Send project details Understand quotation factors

Buyer questions

Questions to answer before selecting a T‑cork machine.

These questions turn a broad request for a T‑corker into a testable bottle, closure and production brief. The answer is not determined by output alone: closure presentation, bottle support, finished appearance and restart behaviour all influence the correct machine route.

What determines whether a T‑cork project needs manual placement or automatic feeding?

Manual placement is usually practical when an operator can present every closure consistently at the required production rate. Automatic feeding becomes relevant when labour, line continuity or repeatable orientation makes manual handling the constraint. The actual closure must still be tested because top shape, weight distribution, finish and shank variation determine whether reliable automatic orientation is possible.

Can a decorative T‑cork be aligned with the front label?

A decorative T‑cork can only be aligned with the front label when the closure has a detectable directional feature and the machine has a reliable way to orient it before insertion. The bottle also needs a known rotational position. A trial should prove orientation before pressing and confirm that guides, discharge handling and downstream equipment do not rotate the bottle afterwards.

Should machine trials use empty bottles, filled bottles or both?

Machine trials should use the condition that represents production, with empty bottles used only for early mechanical checks where appropriate. Filled weight can change bottle stability, conveyor behaviour and the reaction at the support point. Where product residue, temperature or overfill could affect the neck, representative filled-bottle testing provides evidence that an empty-bottle demonstration cannot provide.

How should an acceptable finished T‑cork height be defined?

Acceptable finished height should be defined from a repeatable bottle datum, with a permitted range, an agreed measurement method and a clear rule for squareness. The visual result may also include top orientation and freedom from marking. A single reference bottle is not enough; the acceptance window should be checked across representative bottle and closure variation.

What makes a T‑cork project ready for a useful quotation?

A T‑cork project is ready for a useful quotation when the bottle and closure are identified, samples are available, the desired finished result is defined, the expected good output is stated and the machine boundary is clear. Include format count, line direction, available footprint, utilities, feeder expectations, upstream and downstream interfaces, and any formal sample-trial or acceptance requirement.

Continue with the measurement guide sample-trial guide for the next stage of specification, testing or fault diagnosis.

Browse T‑cork questions Send project details

New buyer routes

Match the T‑corking question to the right specification route.

Different enquiries use the same words but need different evidence. A craft distillery deciding whether to move beyond hand insertion needs a different answer from a large-format spirits bottle, a feeder-jam investigation or a guarded line installation.

Small-batch distillery T‑corking

Choose between hand presentation, pneumatic pressing, semi-automatic stations and automatic feeding without assuming that higher automation is always the first step.

Large-format spirits bottles

Check bottle support, filled weight, decorative top contact and downstream transfer before adapting a T‑corking process to larger premium bottles.

Feeder jam prevention

Separate bowl, rail, escapement and restart issues so the first uncontrolled closure point is addressed rather than hidden by faster settings.

Additional specialist routes

More ways to specify the right T‑corking route.

These new resources cover search and enquiry topics that often sit between a machine name and a final quotation: gin bottle handling, miniature formats, wooden T‑tops, realistic output, downstream seals, quality checks and flammable-spirit environments.
